Electrical Connections

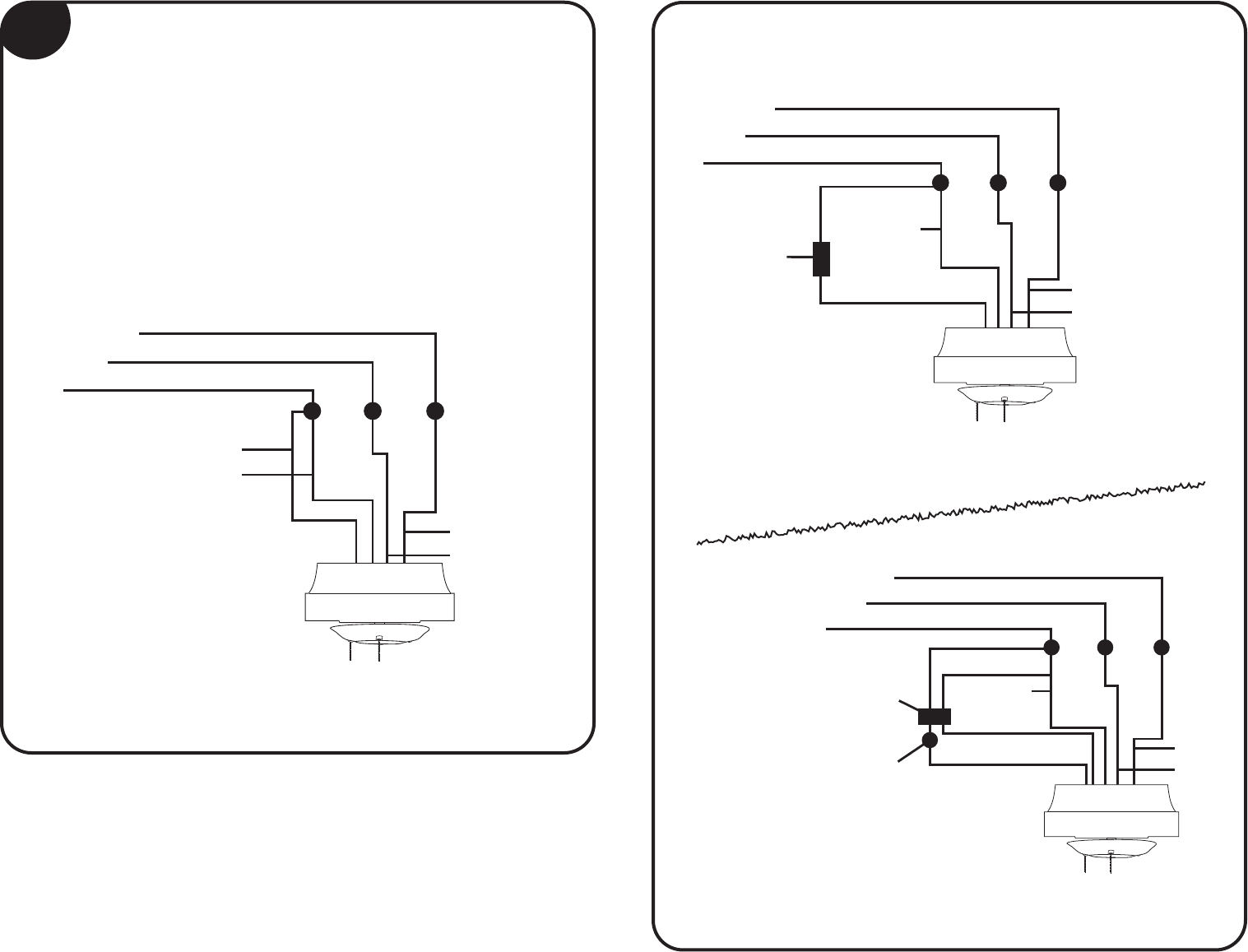

Connect black and blue (if provided) fan wires to black outlet wire.

Connect white fan wire to white outlet wire and green grounding lead

wire from the grounding conductor to the supply circuit (see figure A).

Use wire connectors provided with your fan. No loose strands or loose

connections should be present. After wires have been connected, they

must be spread apart so the green and white are on one side of the outlet

box and the black and blue are on the other side. Turn splices upward

and carefully push all wiring into outlet box. For optional wall control

see figure B or Figure C for alternate wiring. When wall switches are

employed, switches should be UL listed for use with ceiling fan.

NOTE: Make sure fan on/off switch is always at "high speed" location if your fan is

controlled by additional wall switch.

Ground

Black

White

Blue

Black

White

Green

Figure A

Ground

Black

White

Green

Black

Blue

Light

Switch

Fan

Switch

Black

Figure C

Electrical Connections Continued…

Ground

Black

White

Green

Black

Blue

Light Switch

Figure B
