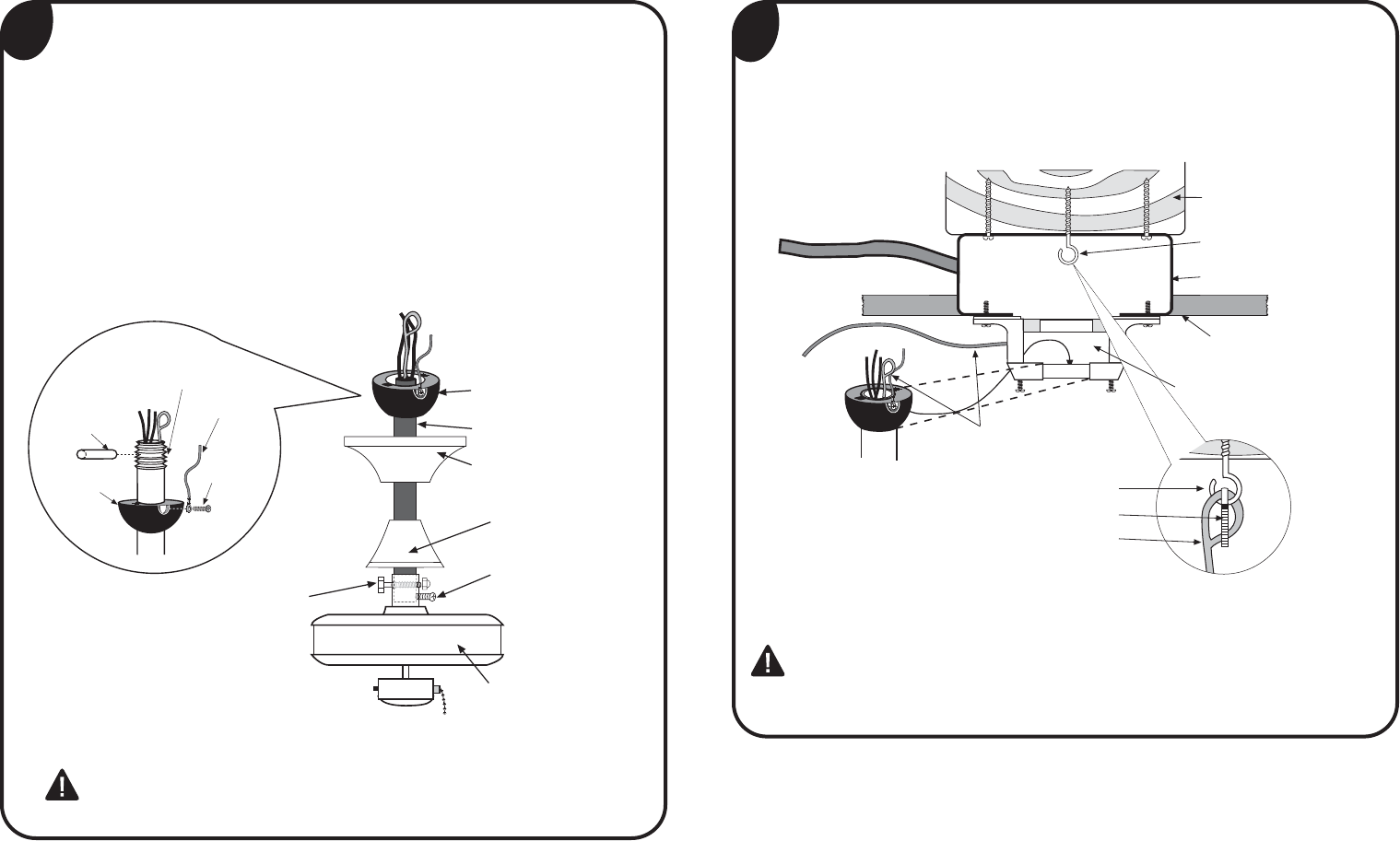

Step 7

For added security, attach safety cable from fan unit to "J" hook (S9)

in outlet box. Secure by looping zip tie (S10) through safety cable and

"J" hook. Tighten zip tie securely. Lift fan onto the mounting bracket

(#1). Turn housing until hanging ball seats itself into ball socket

(listen for click).

NOTE: Parts furnished will allow

you to install your fan at up to a

35° angle. Angles greater than

35° will require a 45° angle

adapter (see dealer). NOTE: J

Hook installation is a Canadian

requirement only.

Outlet Box (A)

Support Beam

Ceiling

Green Ground Wire

“J” Hook (S9)

Safety Cable

Zip Tie (S10)

Mounting Bracket (#1)

OUTLET BOX

WARNING: To reduce the risk of fire, electric shock or personal injury,

mount so outlet box marked "acceptable for fan support" and use mounting

screws provided with the outlet box. Most outlet boxes commonly used for

the support of lighting fixtures are not acceptable for fan support and may

need to be replaced. Consult a qualified electrician if in doubt.

Step 6

Position downrod so the hole in the downrod aligns with the hole in the

coupling on the motor. Insert safety bolt (S7) through coupling and

downrod and attach nut. Tighten firmly. Tighten set screw "A" against

downrod. For BC & OPXL Series place flange cover (4) over downrod

assembly until it covers flange. Place canopy (3) over downrod (2).

Replace hanging ball, insert hanging pin through downrod and tighten

set screw "C" in hanging ball into downrod.

NOTE: Flange cover will not work with supplied 2 1/2 inch downrod. Flange cover

is decorative and will not affect the operation of the fan.

WARNING: Failure to completely tighten downrod as described in

steps 5 & 6 above could result in the fan loosening and possibly falling.

Ground

Wire

BallS

crew

Hanging

Ball

ThreadedSet

Screw Hole

Safety Bolt

and Nut (S7)

Set Screw (A)

Canopy (3)

Motor Housing (5)

Set Screw (C)

Downrod (2)

Flange Cover (#4)

(if included in parts list)

1 2 3 4 5 6 7
