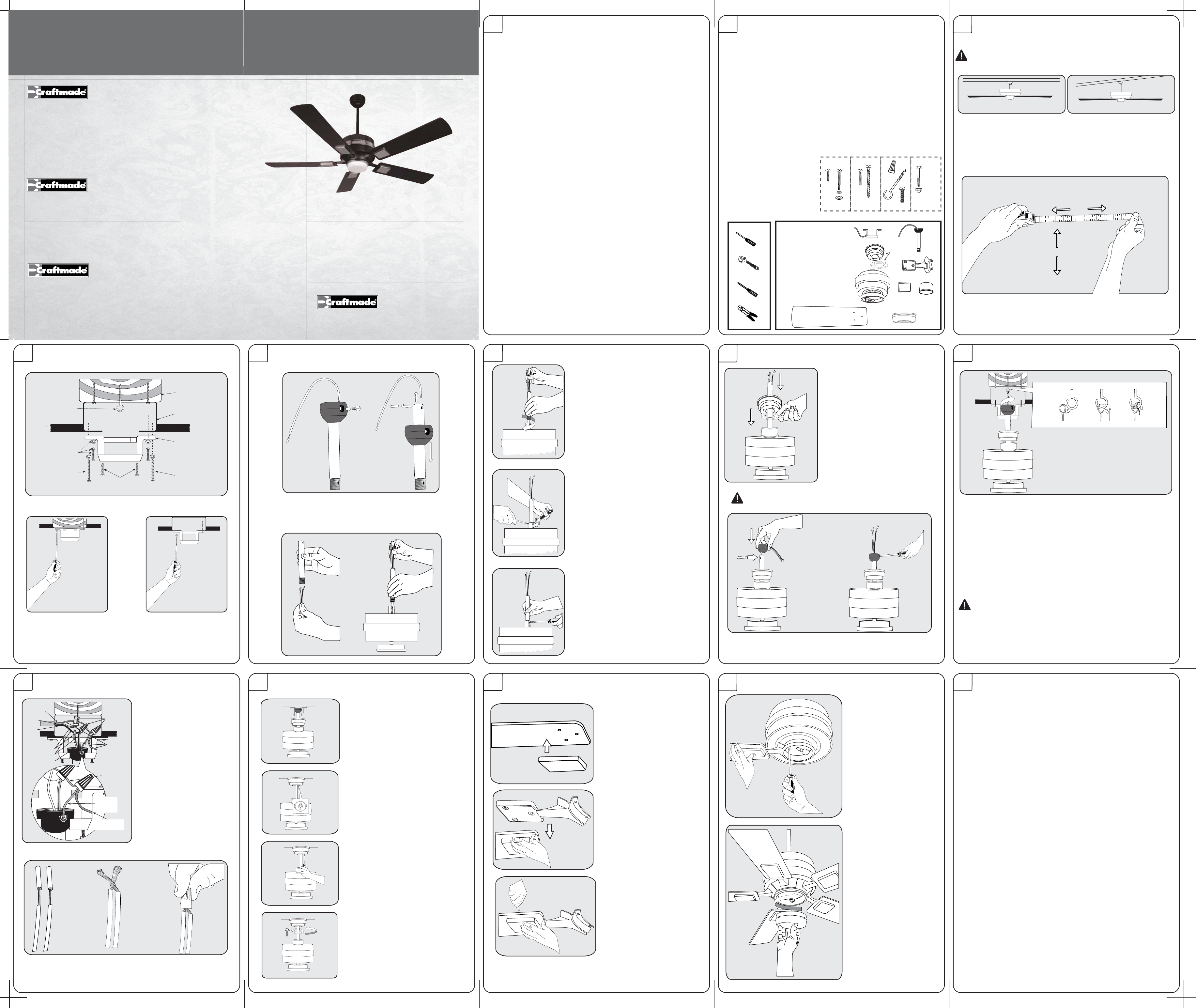

Read and Save ese Safety Precautions

1. Turn oﬀ electricity at main switch before wiring or servicing fan in order to

avoid possible electrical shock.

2. All wiring must be in accordance with the National Electric Code

(ANSI/NFPA70-1999) and local electrical codes. Electrical installation

should be performed by a qualiﬁed licensed electrician.

3. After making the wire connections, the wires should be spread apart with

the grounded conductor and the equipment-grounding conductor on the

one side of the outlet box and the ungrounded conductor on the other side

of the outlet box.

4. e splices after being made should be turned upward and pushed carefully

up into the outlet box.

5. Conductor of a fan identiﬁed as grounded conductor to be connected to

grounded conductor of power supply, conductor of a fan identiﬁed

as ungrounded conductor to be connected to an ungrounded conductor of

power supply, conductor of fan identiﬁed for equipment grounding to be

connected to an equipment-grounding conductor.

6. Fan should not be mounted in an area where it might get wet.

7. To reduce the risk of ﬁre, electric shock or personal injury, mount to outlet

box marked "Acceptable for Fan Support" and use mounting screws provide

with the outlet box.

8. For safety and best operating results, we recommend that you have a qualiﬁed

electrician assemble and install your fan.

9. WARNING: To reduce the risk of ﬁre or electric shock, do not use this fan

with any solid state speed control device.

10. To reduce the risk of personal injury, do not bend the blade brackets when

installing the brackets, balancing the blades or cleaning the fan.

Do not insert foreign objects in between rotating fan blades.

Turn oﬀ circuit breakers and wall switch to the fan supply line leads.

Before Assembly

1. Make sure that the fan voltage (120) is compatible with your own electrical

system.

2. Check to make sure that your carton contains all the parts mentioned in the

parts list.

NOTE: e box can be used as a work space to prevent any damage on the

ornamental surface.

CAUTION: Before installing, choose a location for mounting the fan where the

blades have at least 7 feet of clearance from all objects and ﬂoor. Mount an

outlet box to the ceiling or use an existing box

CAUTION: Do not mount fan to sheet rock or drywall type materials. To

insure proper support, use the two #1 wood screws to secure mounting bracket

to joist or beam. If the location you choose does not have a suitable support

beam, install a 2”x 4” brace between ceiling joists to support.

30”

84”

IMPORTANT: If using the angle mount method, check to make sure the ceiling angle is

not steeper than 35º. Angles greater than 35º will require a 45º angle adapter.

t$IFDLUPNBLFTVSFCMBEFTBSFBUMFBTUwGSPNBOZPCTUSVDUJPO

t$IFDL%PXOSPE-FOHUIUPNBLFTVSFCMBEFTBSFBUMFBTUBCPWFUIFnPPS

a.) Downrod Mount

(Normal Ceilings)

b.) Angle Mount

(Vaulted Ceilings)

Preparation

Important: When using an existing outlet box, be sure the box is

securely attached to the building structure and can support the full

weight of the fan. Failure to do so can result in serious injury or death.

065-&5#09

Outlet Box (A)

Mounting Bracket (1)

Bracket Screws

& Washers (S3)

Support Beam

Wood Screws (S1)

Canopy Screws (S2)

Ceiling

Wood Screws (S1)

“J” Hook (S8)

Installing Mounting Bracket

Prior to securing mounting bracket, screw "J" hook (S8) into ceiling outlet box

as a secondary support means. Secure mounting bracket (#1) to the outlet box

(A) by tightening bracket screws & washers (S3) as shown. If not mounting to

an outlet box, use wood screws (S1) and washers (S3) and mount securely to

ceiling beam. Be sure at this point to insert canopy screws (S2) in bracket.

NOTE: Do not mount directly to sheet rock or ceiling tile.

Downrod Assembly

-PDBUFEownrPEBTTFNCMZ-PPTFOCBMMTDrew on black hanging ball to

free lock pin. Black hanging ball will slide down. Remove ground screw and

green ground wire. Remove hanging ball from downrod and save all parts.

Insert fan wires through downrod.

Tighten set screw (A) against downrod.

Insert saftey bolt (S7) through ﬂange & downrod

and attach nut. Tighten ﬁrmly.

read the downrod onto the motor housing

NBLJOHTVSFUIFXJSFTEPOUHFUUXJTUFE

Place Flange cover (4) over downrod

assembly. Place Canopy Assembly (3) over

downrod (2).

WARNING: Failure to completely tighten downrod as described in

steps above could result in the fan loosening and possibly falling.

-JGUGBOPOUPUIFNPVOUJOHCSBDLFU Turn housing until hanging ball seats

itself into ball socket (listen for click).

WARNING: To reduce the risk of ﬁre, electric shock or personal injury,

mount so outlet box marked "acceptable for fan support" and use mounting

screws provided with the outlet box. Most outlet boxes commonly used for

the support of lighting ﬁxtures are not acceptable for fan support and may

need to be replaced. Consult a qualiﬁed electrician if in doubt.

For added security, attach safety cable from fan unit to "J" hook (S8) in outlet

box. Secure by looping zip tie (S9) through safety cable and "J" hook. Tighten

zip tie securely.

White (Neutral)

Ground

White

Black

Wire

Connectors

(S6)

Ground

(Green)

Blue

Black

(Power)

Outlet Box

Ground (Green)

Downrod

Ground

(Green)

Mounting Bracket

Ground (Green)

2. After connections are made, turn

splices upward and push carefully

into outlet box. Separate blue and

black wires on one side of the box,

and white and green wires on the

other side.

1. Connect fan wires to ceiling

wires: white fan wire to white

outlet wire, black to black and

green to green. Wire connectors

(S6) are provided for your conve-

nience. If an additional blue wire is

present then also connect the blue

wire to the black wire.

ere are up to four wires coming from the

top of the motor (including ground wire).

Tighten screws ﬁrmly.

BETTER BY DESIGN

Installation Instructions

Instrucciones de instalación

Instructions d’installation

FA52

P. O. Box 1037

650 S. Royal Lane, Suite 100

Coppell, TX 75019 EE.UU.

(800) 486- 4892

8:00 a 5:00 CST (Hora local central)

Número de fax sin cargo: (877) 304-1728

Correo electrónico: [email protected]

www. craftmade.com

MEJOR DISEÑO

UNE CONCEPTION EXCEPTIONNELLE

P. O. Box 1037

650 S. Royal Lane, Suite 100

Coppell, TX 75019 EE.UU.

de 8 heures à 17 heures (Heure standard du centre)

Numéro de télécopieur gratuit : (877) 304-1728

Email: [email protected]

www. craftmade.com

P.O. Box 1037

650 S. Royal Lane, Suite 100

Coppell, TX 75019

(800) 486-4892

8:00 to 5:00 CST (Central Standard Time)

Toll Free Fax: (877) 304-1728

email: [email protected]

www.craftmade.com

BETTER BY DESIGN

Avenue Ceiling Fans

Trouble Shooting

Problem A: Fan Will not Start

Remedies:

1. Check fuse or circuit breaker and replace if necessary

2. Turn oﬀ electrical power and check all wire connectors.

3. Check on/oﬀ TCS and wall control selector switch. See operation

instructions.

Problem B: Fan is Excessively Noisy

Remedies:

1. Check that all screws in fan assembly are tight and properly seated.

2. Check to make sure mounting bracket is installed properly.

3. Check to make sure light kit and glass reinstalled properly and tight.

4. If wall control is used, insure the wall control is not a transformer or

a variable speed type.

Problem C: Fan Wobbles

Remedies:

1. Check that all blades are screwed ﬁrmly into blade holders.

2. Check that all blade holders are screwed ﬁrmly into motor.

3. Check the weight of blades. All our blades are weighed on

electronic scales. e weight is marked on the reverse side of the fan

blade near the motor end. All of the blades should be the same

weight to prevent fan from wobbling.

4. A balancing kit is enclosed if needed.

Replace hanging ball, insert hanging pin through downrod and tighten set

screw "C" in hanging ball into downrod.

Twist clockwise to lock into place.

Attach canopy (3) to the mounting

bracket by placing screws (S2) into slot

in canopy.

Assemble blade arm, blade and

Blade Arm Medallion.

Using motor screws (S5) provided, line up holes from the blade arm

with the holes in the motor housing. Tighten screws securely.

A slot (as shown in Step 12) allows

you to tighten the blade assembly to

the Fan Motor.

Screw in Halogen bulb (included).

5XJTUUIF(MBTTPOUP-JHIU,JU

Fitter securely.

Hardware

Inventory

Tools you Need

1. Phillips Screwdriver

3. Adjustable Wrench

2. Flat Screwdriver

4.Wire Strippers

Screw Package

S1. Wood Screws & Washers

S2. Screws (for Canopy)

S3. Bracket Screws & Washers

S4. Blade Screws

S5. Motor Screws

S6. Wire Connectors

S7. Safety Bolt & Nut

S8. "J" Hook

S9. Zip Tie

Quantity

What You Have

Parts

1. Mounting Bracket

2. Down Rod Assembly

6" Rod Supplied

3. Canopy Assembly

4. Flange Cover

5. Fan Housing & Motor

6. Blade Arms

7. Blades

8. Medallion

9. Glass

Quantity

Hold together the blade and Blade

Arm Medallion. Attach the blade

arm.

Seat the canopy screw cover into slots

and twist to lock.

Avenue Ceiling Fans 1
