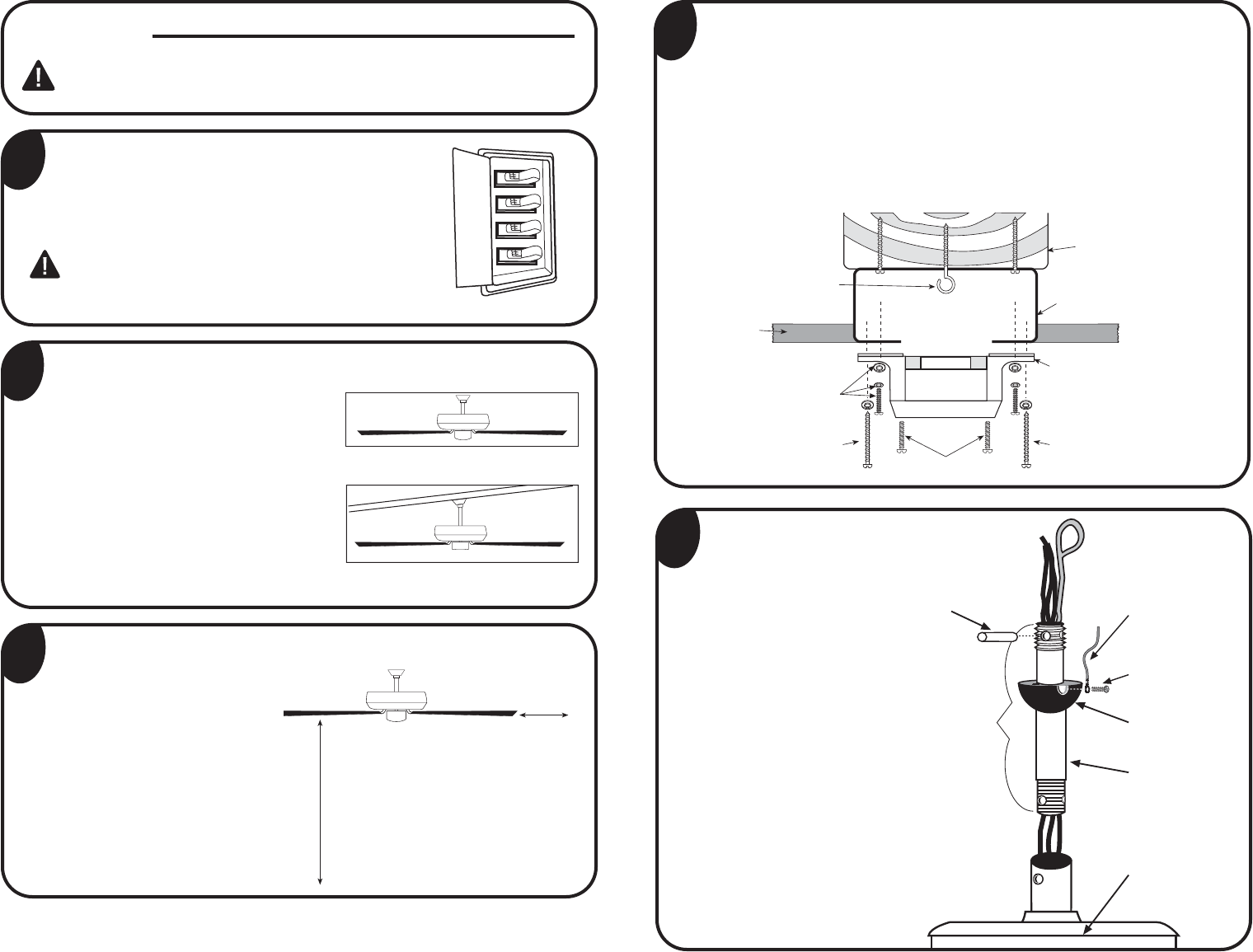

Step 1
Turn off circuit breakers and wall switch to the
fan supply line leads.
Warning: Failure to disconnect power supply prior
to installation may result in serious injury or
death.To reduce the risk of shock, this fan must be
installed with an isolating wall control/switch.
1
Step 3
Check to make sure blades are at
least 30” from any obstruction.
Check downrod length to
ensure blades are at least
3
7' above the floor.
84”
(2.1m)
Min.
30”
0.75m
Min.
Preparation
Important: When using an existing outlet box, be sure the box is securely
attached to the building structure and can support the full weight of the fan.
Failure to do so can result in serious injury or death.
Step 2
Determine mounting method to use.
A. Downrod Mount
B. Angle Mount
Craftmade Part #45AD (see dealer)
2
IMPORTANT: If using the angle mount
method, check to make sure the ceiling
angle is not steeper than 35°. Angles greater
than 35° will require a 45° angle adapter.
Downrod Installation
(Vaulted Ceilings)
Downrod Installation
(Normal Ceilings)
Step 4
Prior to securing mounting bracket, screw "J" hook (S9) into ceiling
outlet box as a secondary support means. Secure mounting bracket
(#1) to the outlet box (A) by tightening bracket screws & washers (S3)
as shown. If not mounting to an outlet box, use wood screws (S1) and
washers (S3) and mount securely to ceiling beam. Be sure at this
point to insert canopy screws (S2) in bracket.
NOTE: Do not mount
directly to sheet rock or ceiling tile.
NOTE: J Hook installation is a Canadian requirement only.
4
OUTLET BOX
Outlet Box (A)
Mounting Bracket (1)
Bracket Screws
& Washers (S3)
Support Beam
Wood Screws (S1)
Canopy Screws (S2)
Ceiling
Wood Screws (S1)
“J” Hook (S9)
Fan Motor Housing
Hanging Ball
Lock Pin
Downrod
Ball Screw
Green Ground
Wire
Downrod
Assembly
(#2)
5
Step 5
Locate downrod
assembly (#2). Loosen
ball screw on black
hanging ball to free
lock pin. Black hanging
ball will slide down.
Remove ground screw
and green ground wire.
Remove hanging ball
from downrod and save
all parts. Insert fan
wires through downrod.
Screw downrod into top
of fan motor housing,
being careful that wires
are pulled through.
